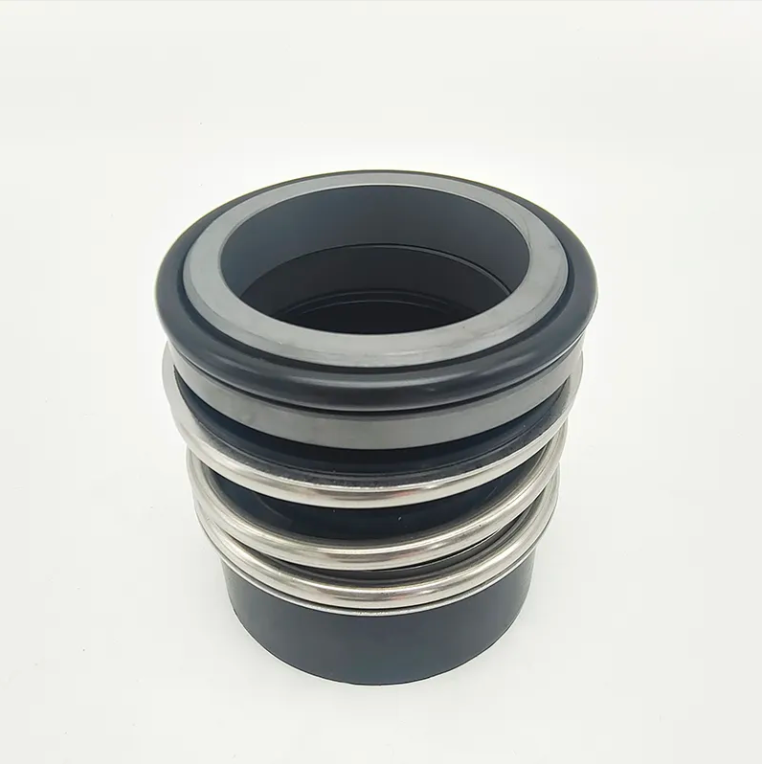

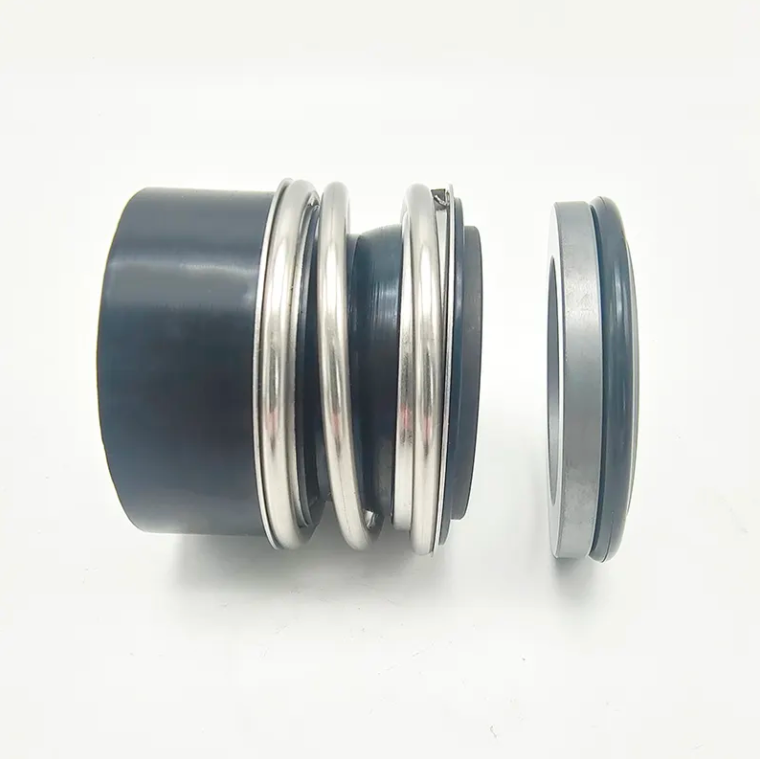

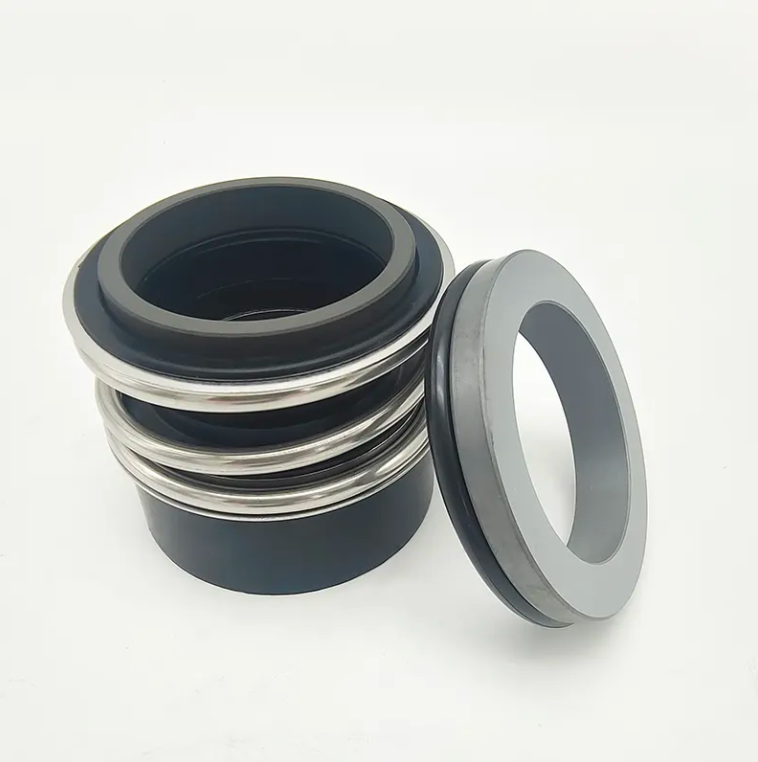

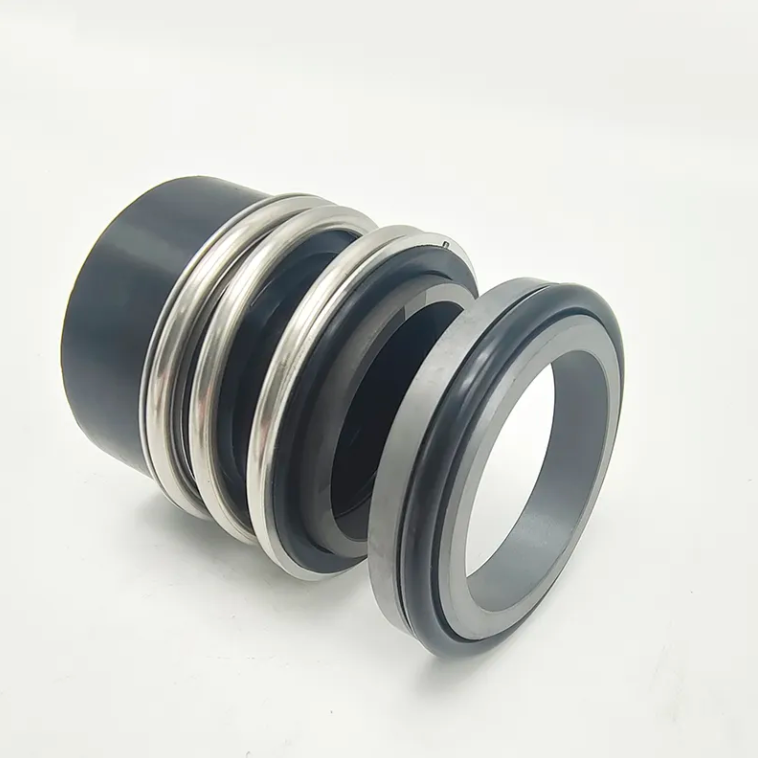

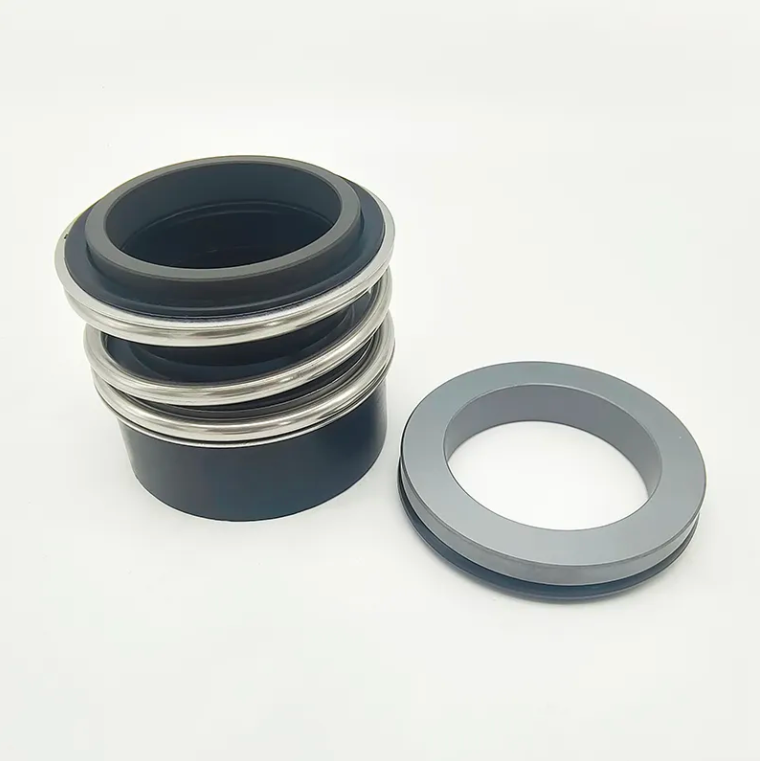

Mechanical Seals MG13-28 MG13/28-Z MG13-28/G6 Mechanical Seals MG13 Shaft Size 28mm with G6 Stationary Seat for TP300 Series Pumps
Mechanical Seals MG13-28 MG13/28-Z MG13-28/G6 Mechanical Seals MG13 Shaft Size 28mm with G6 Stationary Seat for TP300 Series Pumps Mechanical Seals MG13-28 MG13/28-Z MG13-28/G6 Mechanical Seals MG13 Shaft Size 28mm with G6 Stationary Seat for TP300 Series Pumps Mechanical Seals MG13-28 MG13/28-Z MG13-28/G6 Mechanical Seals MG13 Shaft Size 28mm with G6 Stationary Seat for TP300 Series Pumps Mechanical Seals MG13-28 MG13/28-Z MG13-28/G6 Mechanical Seals MG13 Shaft Size 28mm with G6 Stationary Seat for TP300 Series Pumps Mechanical Seals MG13-28 MG13/28-Z MG13-28/G6 Mechanical Seals MG13 Shaft Size 28mm with G6 Stationary Seat for TP300 Series Pumps
Contactar ahora

Mechanical Seals MG13-28 MG13/28-Z MG13-28/G6 Mechanical Seals MG13 Shaft Size 28mm with G6 Stationary Seat for TP300 Series Pumps

Cantidad de orden mínima : 100 piezas Precio : Negotiated
Detalles de empaquetado : caja como requisito Tiempo de entrega : 10 días
Condiciones de pago : T/T, Western Union, carta de crédito Capacidad de la fuente : 10000000pc/mes
Lugar de origen: Hecho en china Nombre de la marca: JR
Certificación: iso9001 Número de modelo: El MG13

Información detallada
Material: Sic sic fkm cer car nbr Función: para bomba de aceite, bomba de agua
Código HS: 848420090 Certificado: ISO9001
Tipo: Burgmann MG13 sello DIMER TCP.13-60. ¿Qué es esto? Estándar o sin altura: Estándar
Tamaño: 12-100m m Nombre del producto: El sello mecánico es el Burgmann MG13, liderazgo M212.N13,
Muestra: Permitido Piezas de metal: Se aplican las siguientes condiciones:

Descripción de producto

Burgmann Rubber Bellow Mechanical Seal MG13 For Water Pump For Roten L3



Operations Conditions:



  1. Pumps: All types of rotating equipment, such as centrifugal pumps, agitators, for most general and light chemical duties, wherever an elastomer Secondary Seal can be used.
  2. Temperature: -30°C~200°C
  3. Pressure: ≤1.2MPa
  4. Speed: ≤ 12 m/Sec
  5. Design feature: Elastomeric bellows seal design including kinds of statconary ring, complying with DIN24960 and ISO3069, combined with P60, P50, t6, t4, T9, C606, etc.

Materials:

  • Rotary Face: Carbon / SIC / TC.
  • Stationary Seat: Ceramic / SIC / TC.
  • Bellows: NBR / EPDM / FKM.
  • Spring: SS304 / SS316.
  • Metal Parts: SS304 / SS316.
Performance Capabilities
Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
12mm to100mm
Brand
LM
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Detail
1.From 12mm to 20mm is packed in plastic sheets grouply and M box.

2.From 22mm to 100mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.
  • Mechanical seal MG13 - is lees commonly used among "MG" seria. The dimensions are the same as for MG1 and MG12, but with prolonged plain spigal portion of the bellows for providing the mounting length.
  • The seal is applied to cenrifugal pumps for water and drainage water.
  • Application to the following pumps is available: Grundfos (NB).
  • Analogs: Burgmann MG13, Lidering М212.N13, DIMER TCP.13-60.
  • Burgmann MG13 Mechanical Pump Shaft Seal for Chemical Pump
  • Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 seal & G60 stationary
  • Aesseal B02/B012/B013 seal
  • Flowserve Pac-Seal 190 / Pac-Seal 192/ Pac-Seal 193
  • Hecker HN 410SU / Hecker HN 410KU / Hecker HN 410NU
  • Roten L3 / Roten L3k / Roten L3

Mechanical Seals MG13-28 MG13/28-Z MG13-28/G6 Mechanical Seals MG13 Shaft Size 28mm with G6 Stationary Seat for TP300 Series Pumps 0

Mechanical Seals MG13-28 MG13/28-Z MG13-28/G6 Mechanical Seals MG13 Shaft Size 28mm with G6 Stationary Seat for TP300 Series Pumps 1Mechanical Seals MG13-28 MG13/28-Z MG13-28/G6 Mechanical Seals MG13 Shaft Size 28mm with G6 Stationary Seat for TP300 Series Pumps 2Mechanical Seals MG13-28 MG13/28-Z MG13-28/G6 Mechanical Seals MG13 Shaft Size 28mm with G6 Stationary Seat for TP300 Series Pumps 3Mechanical Seals MG13-28 MG13/28-Z MG13-28/G6 Mechanical Seals MG13 Shaft Size 28mm with G6 Stationary Seat for TP300 Series Pumps 4



We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
