Mechanical Seal for Fristam FL Pump Model FL55/FLF55 FL75/FLF75 FL100/FLF100 FL130/FLF130

Cantidad de orden mínima : 5pc Precio : Negotiated
Detalles de empaquetado : casilla como requisito Tiempo de entrega : 20-30 días
Condiciones de pago : T/T, Western Union, L/C Capacidad de la fuente : 100000pc/mes
Lugar de origen: Hecho en china Nombre de la marca: JR
Certificación: ISO9001 Número de modelo: Fr-17

Información detallada

Material: COCHE CER NBR DE SIC SIC FKM Función: Para la bomba de aceite, la bomba de agua
Paquete de transporte: caja Código HS: 848420090
Especificación: Sello mecánico doble Certificado: ISO9001
Tipo: Fr-17 Estándar: Estándar
Estilo: Sellos mecánicos de cinturón FR-17 Reemplazo: FR-17 Doble sello mecánico

Descripción de producto

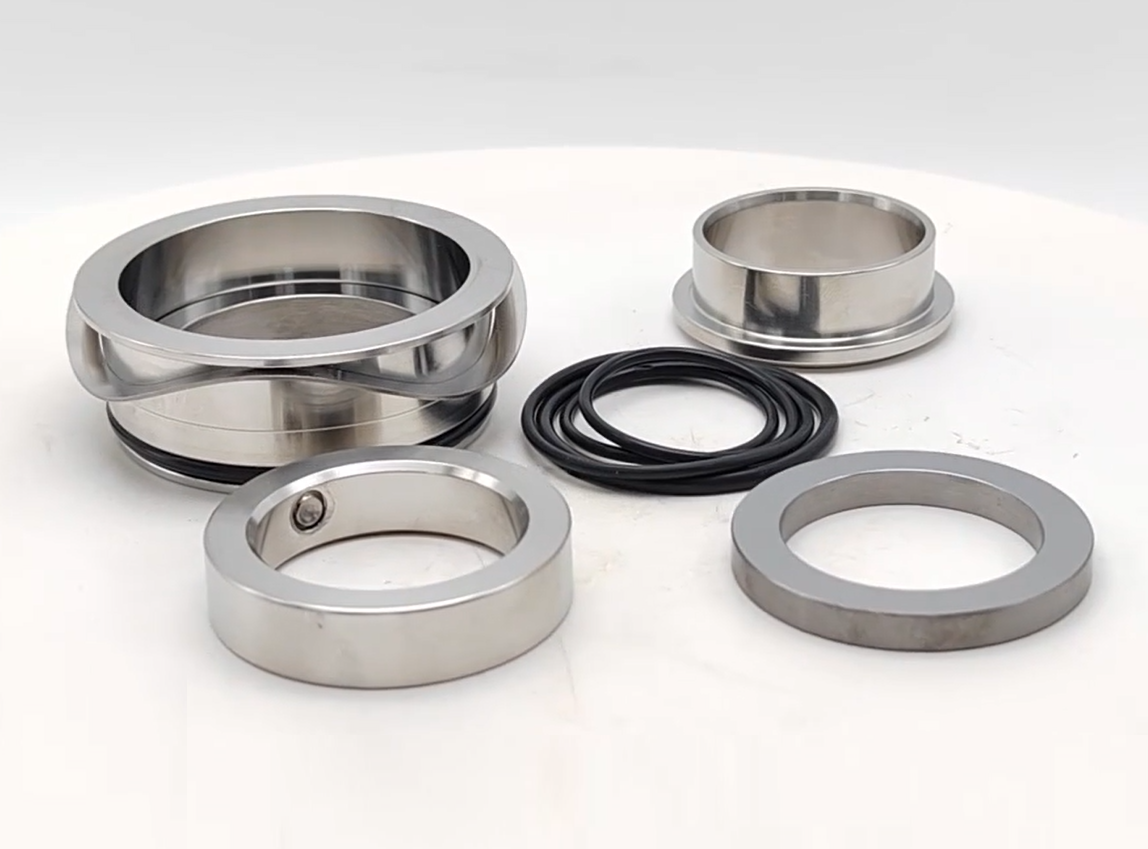

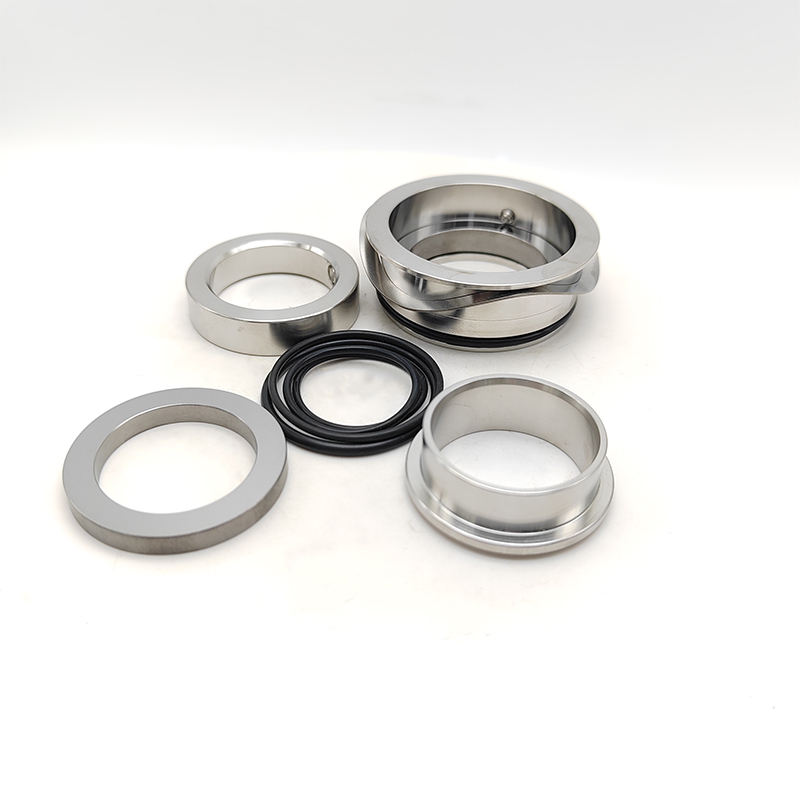

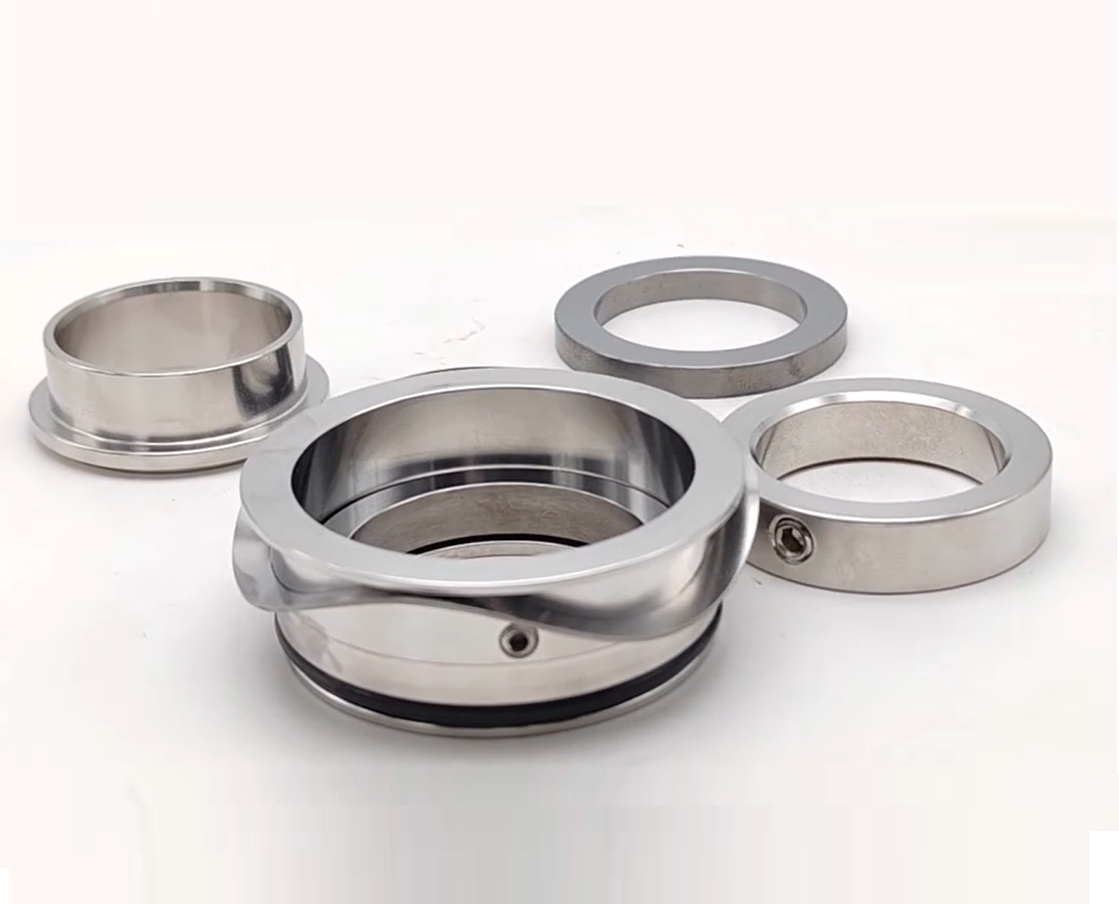

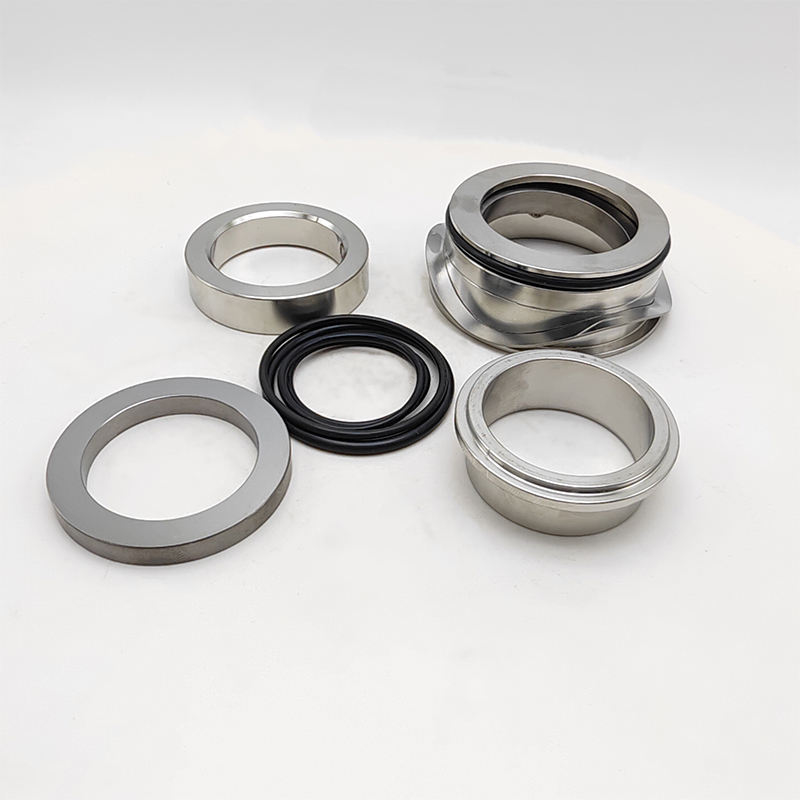

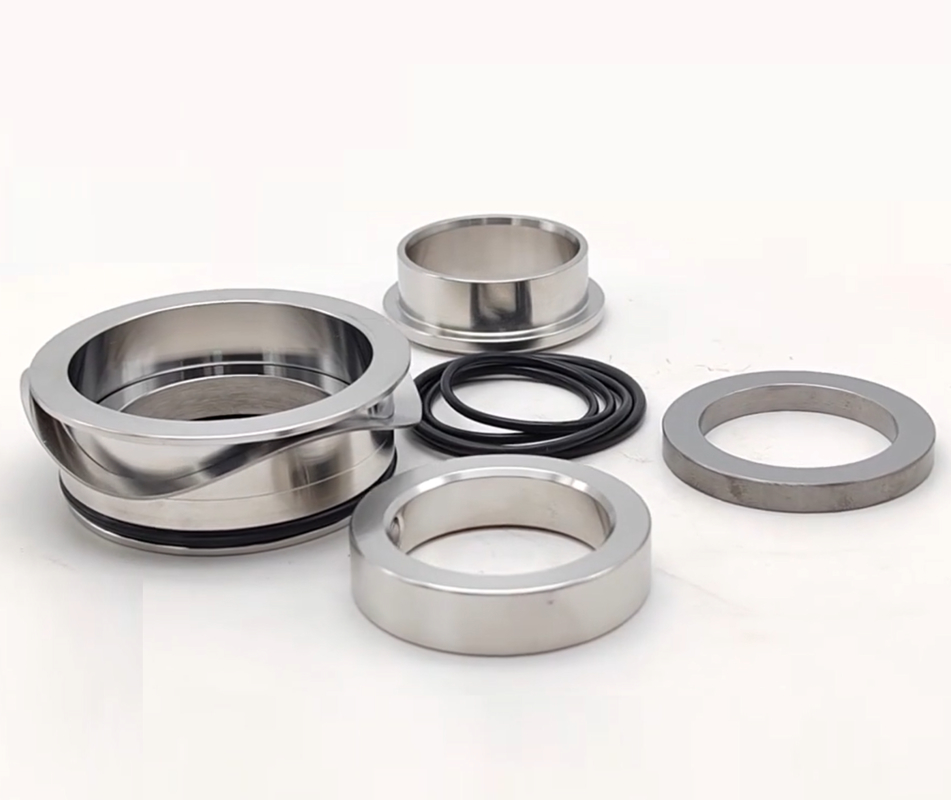

Mechanical Seal for Fristam FL Pump Model FL55/FLF55 FL75/FLF75 FL100/FLF100 FL130/FLF130



Operational Conditions:

  1. Structure Description:
  2. Type: Suit f or FRISTAM FLF55 and FLFN 55 Pumps
    Replacement:AES W0FBC, Billi BB1 4 - FL
    Temperature:-40℃ to +250℃
    Material:B,A1,Q1,Q2,U2,P,E,N,V,F,G

Materials:

  • Rotary Face: Carbon / SIC.
  • Stationary Seat: Ceramic / SIC.
  • Bellows: NBR / EPDM / FKM.
  • Spring: SS304 / SS316.
  • Metal Parts: SS304 / SS316.

Performance Capabilities

Mechanical Seal for Fristam FL Pump Model FL55/FLF55 FL75/FLF75 FL100/FLF100 FL130/FLF130 0

d
(mm)
Size
Code

O.E.M

PUMP Model

20 0200 FL55, FLF55
31 0300 FL75, FLF75
38 038 FL100, FLF100



Mechanical Seal for Fristam FL Pump Model FL55/FLF55 FL75/FLF75 FL100/FLF100 FL130/FLF130 1Mechanical Seal for Fristam FL Pump Model FL55/FLF55 FL75/FLF75 FL100/FLF100 FL130/FLF130 2Mechanical Seal for Fristam FL Pump Model FL55/FLF55 FL75/FLF75 FL100/FLF100 FL130/FLF130 3





We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
