Mechanical Pump Seals For Tp Series Centrifugal Pump Gea Mechanical Seal 1661 For Sanitary Pumps

Cantidad de orden mínima : 5pc Precio : Negotiated
Detalles de empaquetado : casilla como requisito Tiempo de entrega : 20-30 días
Condiciones de pago : T/T, Western Union, L/C Capacidad de la fuente : 100000pc/mes
Lugar de origen: Hecho en china Nombre de la marca: JR
Certificación: iso9001 Número de modelo: Gea

Información detallada

Material: Sic sic fkm Función: Para la bomba de aceite, la bomba de agua
Paquete de transporte: Caja Código HS: 848420090
Especificación: Sello mecánico de la bomba GEA Certificado: ISO9001
Tipo: Para la bomba GEA Estándar: Estándar
Estilo: Sello mecánico Nombre del producto: Sellos mecánicos

Descripción de producto

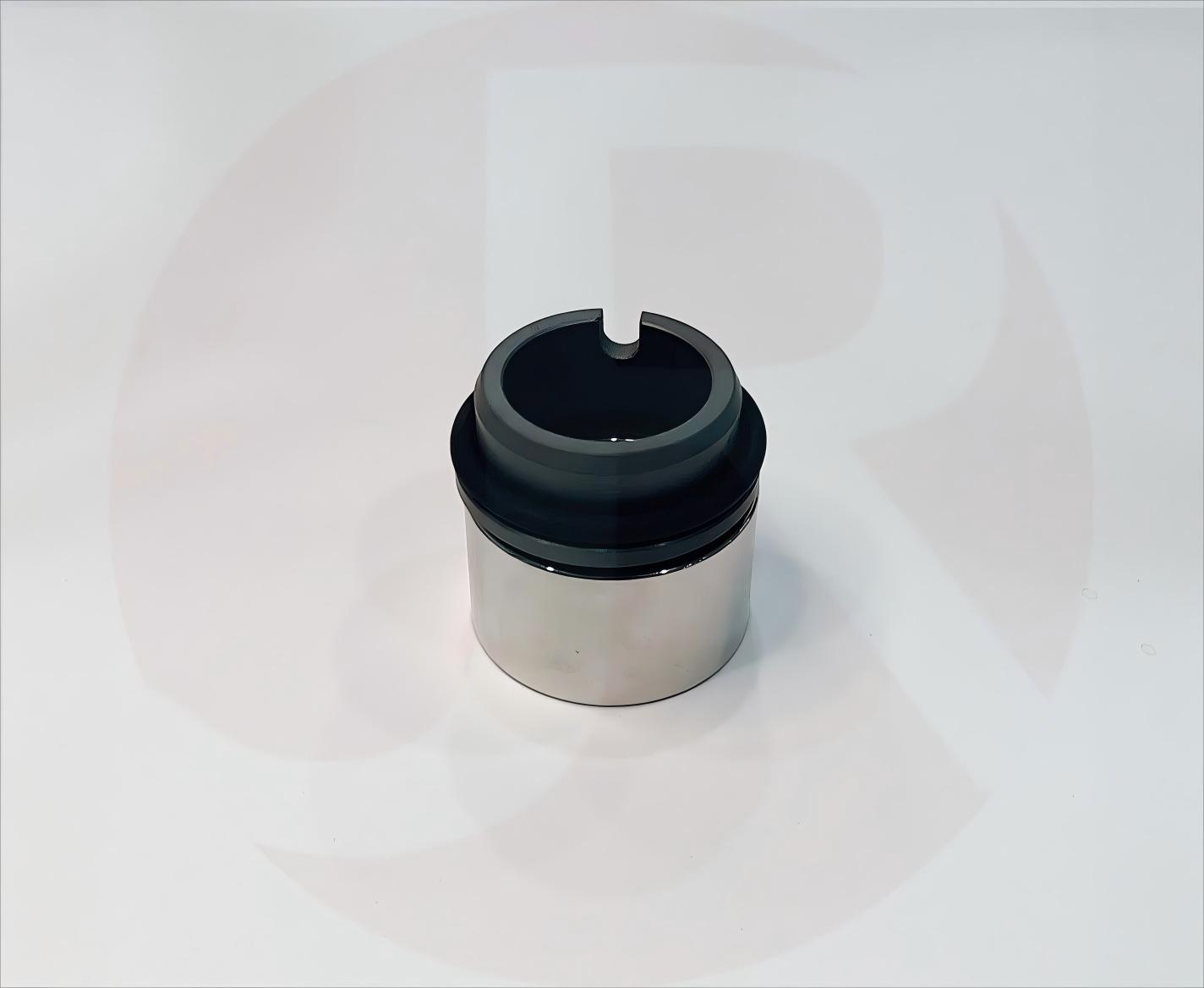

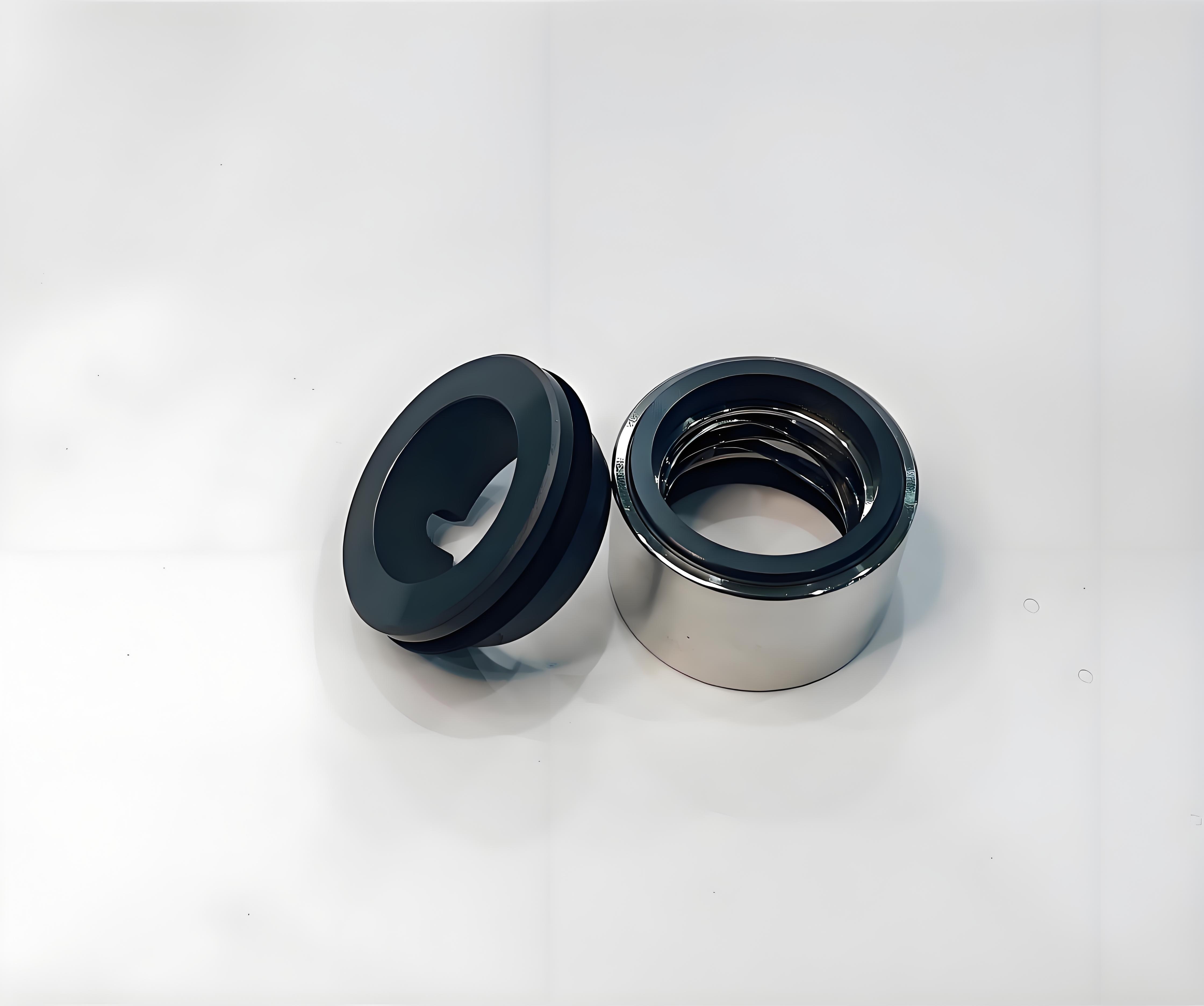

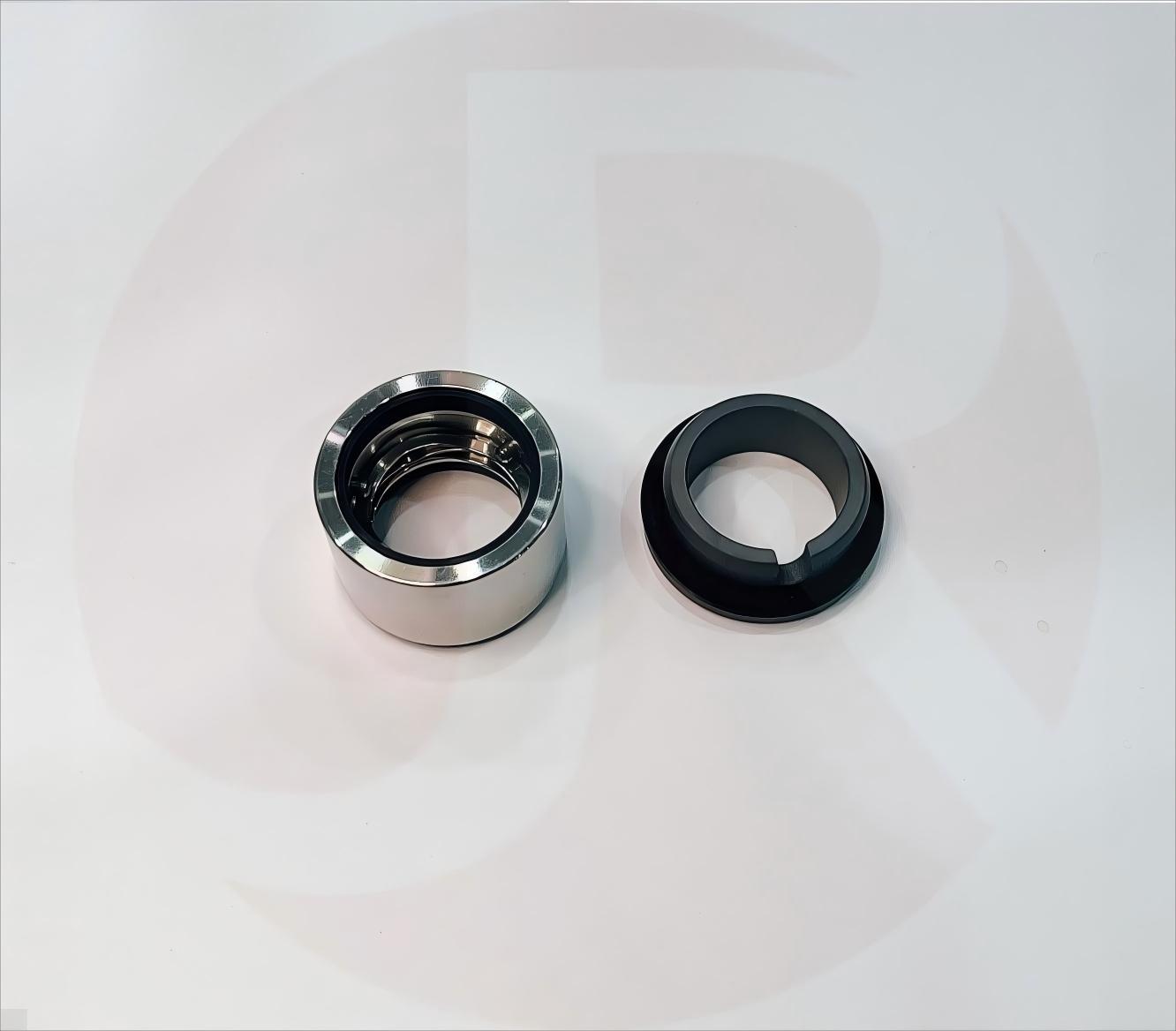

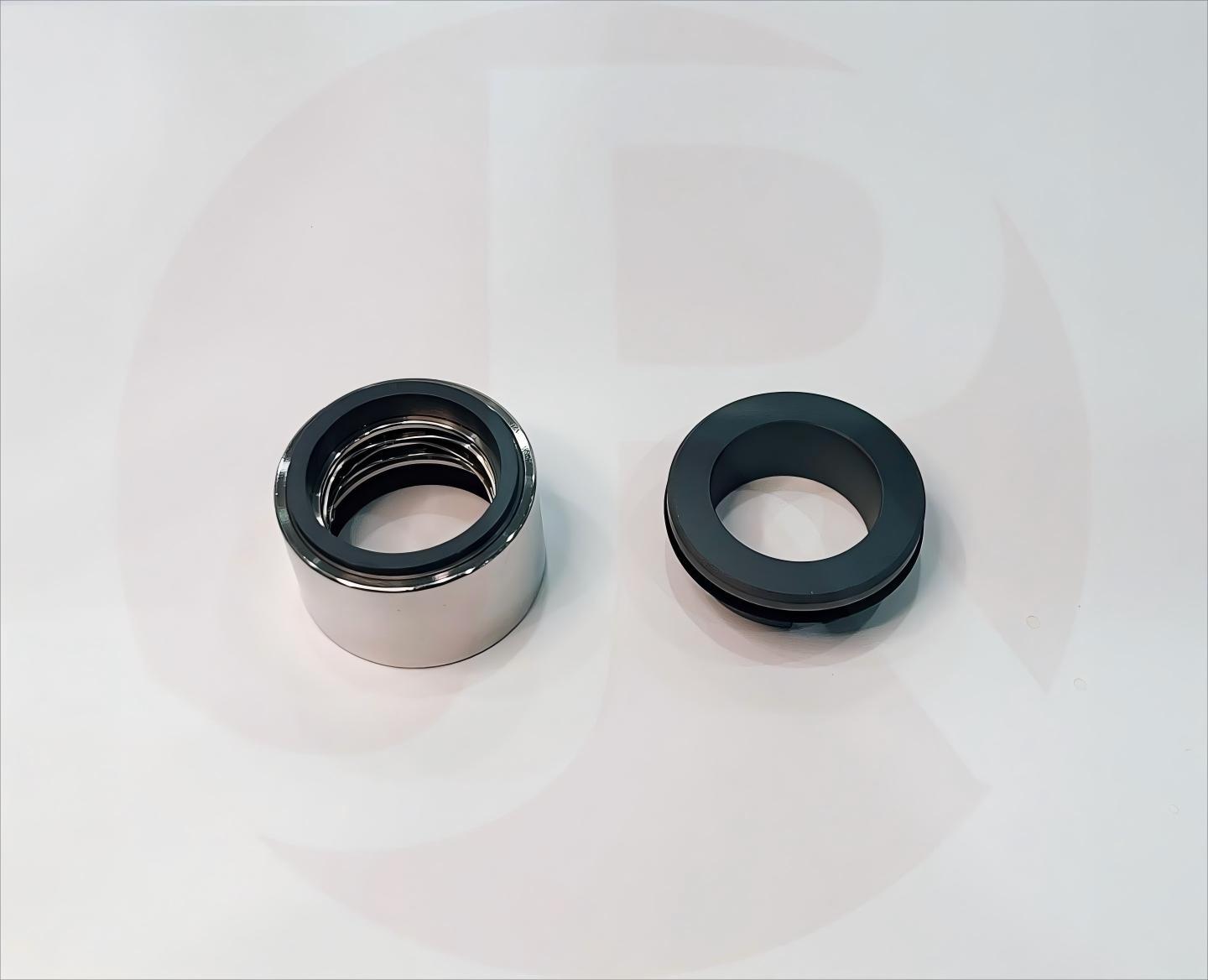

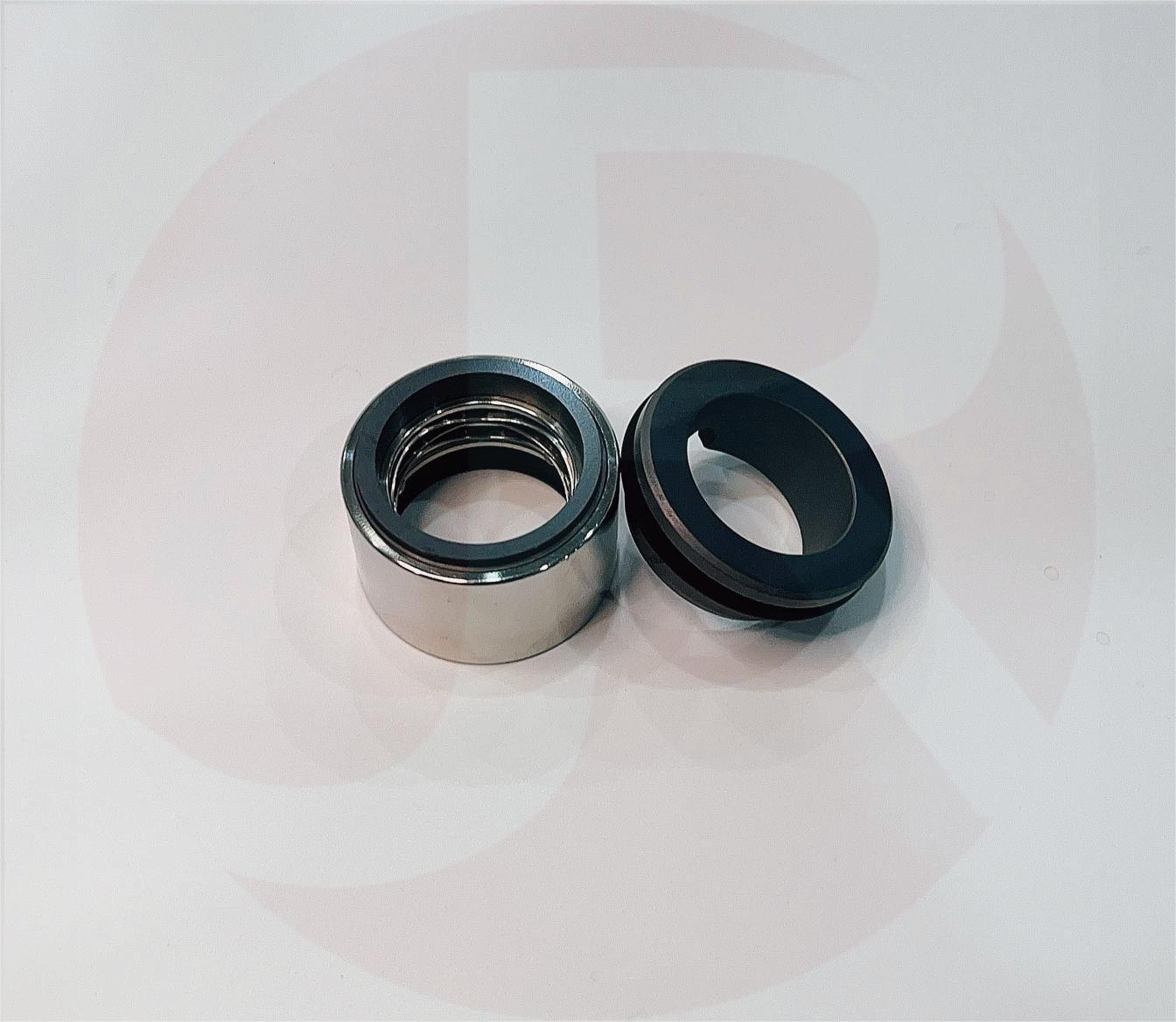

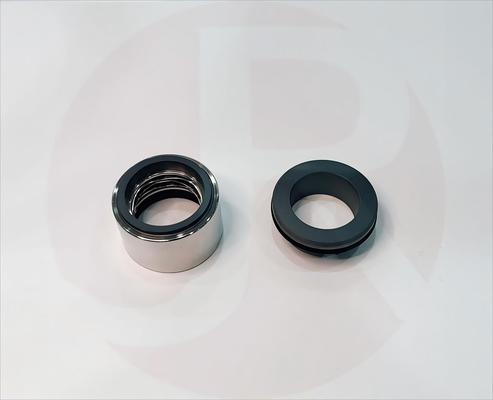

GEA Hilge Mechanical Seal 25MM 30MM For Sanitary Pumps Gea Pump



Operational Conditions:

  1. Mechanical seals for sanitary pumps
    Axial diameter:25mm 30mm
    SIC/SIC/V /316L SIC/SIC/EPDM/316L
    Replace original import
  2. Temperature: -20ºC to +180ºC
  3. Pressure: ≤2.5MPa
  4. Speed: ≤15m/s

 Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel

Performance Capabilities

Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 16 bar
Speed
Up to 20 m/s
End play/axial float allowance
±0.1mm
Size
25mm 30mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Carbon, SiC, TC
Elastomer
NBR, EPDM, etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
  • Mechanical seals for sanitary pumps
    Axial diameter:25mm 30mm
    SIC/SIC/V /316L SIC/SIC/EPDM/316L
    Replace original import




Mechanical Pump Seals For Tp Series Centrifugal Pump Gea Mechanical Seal 1661 For Sanitary Pumps 0Mechanical Pump Seals For Tp Series Centrifugal Pump Gea Mechanical Seal 1661 For Sanitary Pumps 1Mechanical Pump Seals For Tp Series Centrifugal Pump Gea Mechanical Seal 1661 For Sanitary Pumps 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
